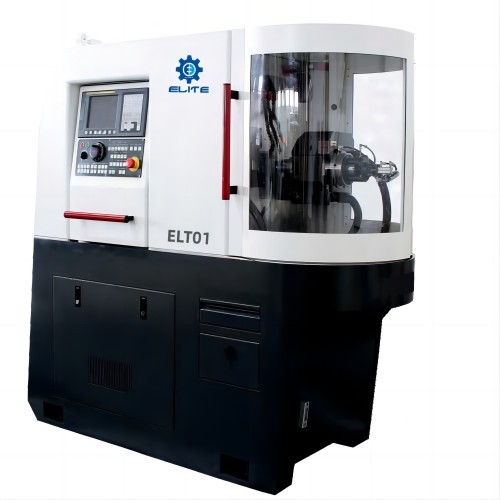

SWISS TYPE CNC LATHE FANUC ELT01

l Integrated machine base to ensure rigidity and stability.

l Built in spindle motor for both main/sub spindle. High precision ball bearing. Cs axis control and indexing.

l Compact structure with low vibration and noise

l Gang tool slide with movable headstock. Full stroke rotary guide-bush for supporting during cutting.

l AC servo control for X, Y, Z axes. 4 axes could be simultaneously controlled. Built-in absolute encoder. High precision linear guide and ball screw featuring high positioning accuracy and rapid travel speed.

l FANUC 0i-TF plus dual port control system with LCD display and MPG control. Self-diagnosis is available.

l Full closed cover with tempered glass observing window for machining zone.

l Emergency stop button to stop the machine whenever necessary.

l Inter-lock device for spindle and spindle collet.

l Override protection for X, Y, Z slide and overload protection for X, Y, Z servo motor and cooling motor.

Product Detail

No.	Description	Specification	Remark
1	Max. barstock dia.	Φ1mm
2	Max. working length	30mm
3	Spindle speed	16000r/min
4	Through hole (Spindle)	Φ10mm
5	Center height (Spindle)	1130mm
6	Main motor	0.5/0.75kW	Spindle motor
7	O.D turning tool capacity	5
8	Radial live tool	2
9	Tool shank	□8×100~120mm
10	Mechanical live tool rpm	8000r/min
11	High-speed live tool rpm	6000r/min
12	Control Mode	Semi-closed
13	Detecting element	Built-in Encoder
14	X, Y, Z increments	0.0001mm
15	X, Y, Z Rapid feed	20m/min
16	X, Y, Z servo motor power	0.5kW
17	X, Y, Z repeatability	0.002mm
18	Radial run out of the positioning hole for pushing sleeve in the spindle	0.002mm
19	Coolant motor	0.15kW
20	Power input	6kVA
21	Pressure requirement	0.5MPa.300Nl/min
22	Machine Weight	~1000kg
23	Dimension	1880×950×1750mm
