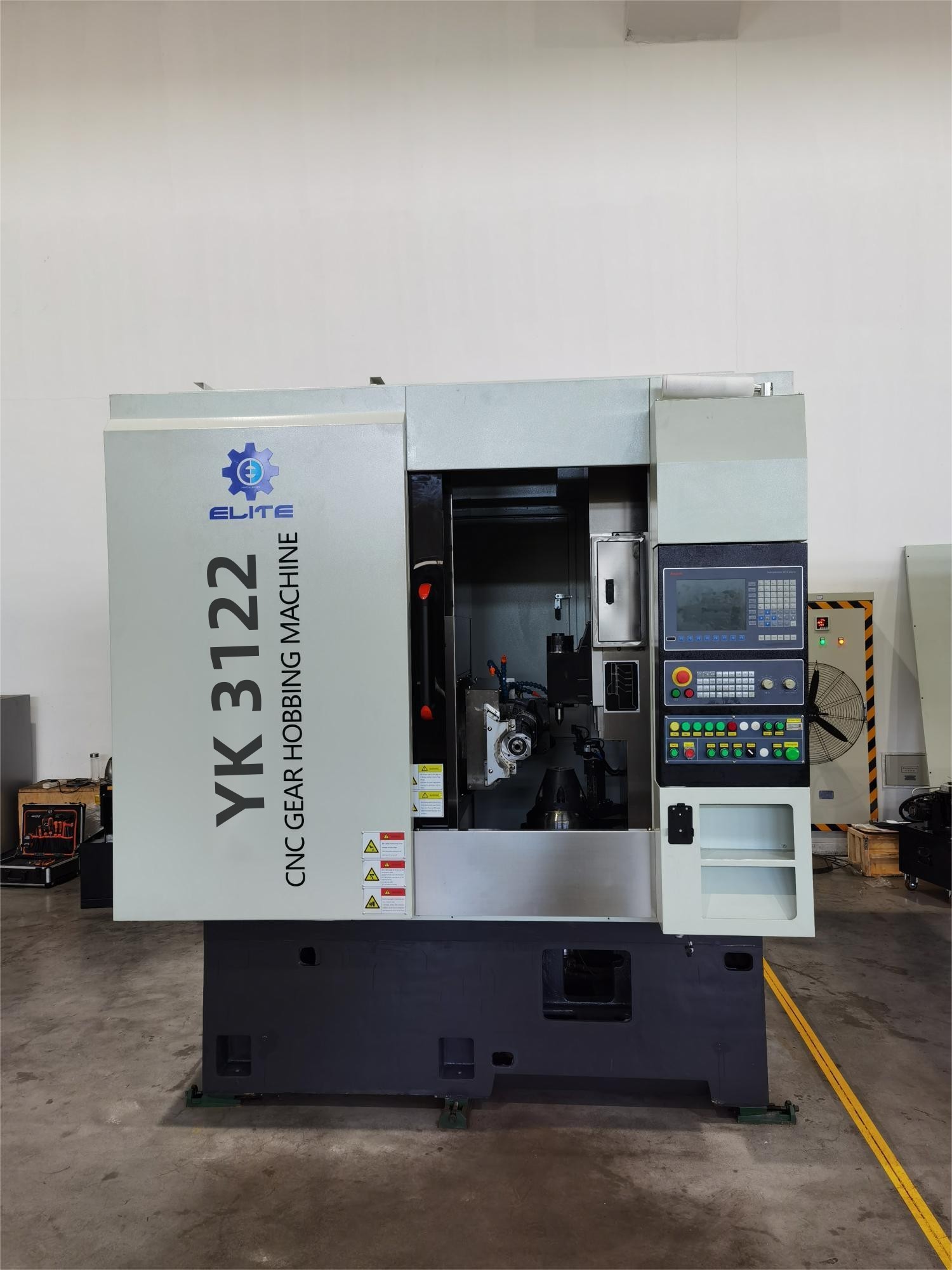

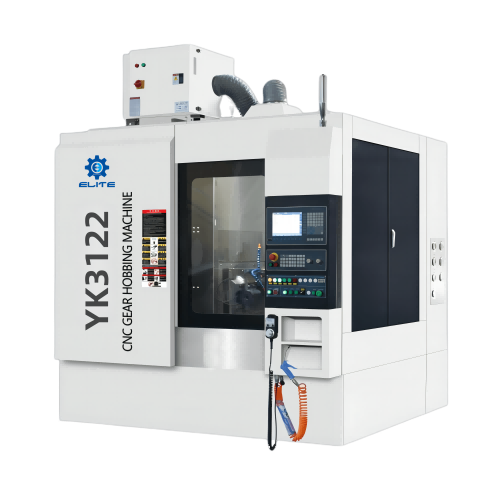

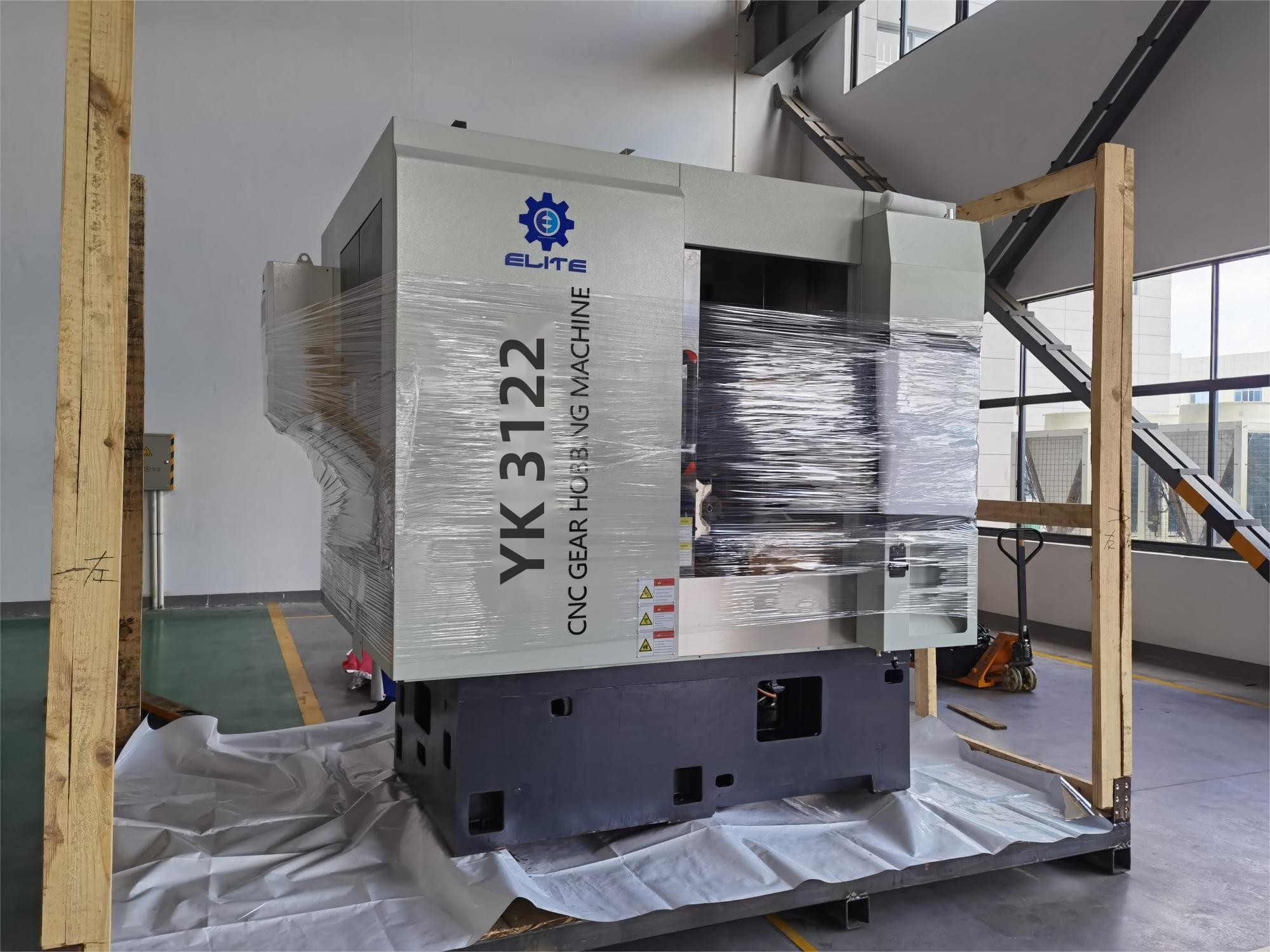

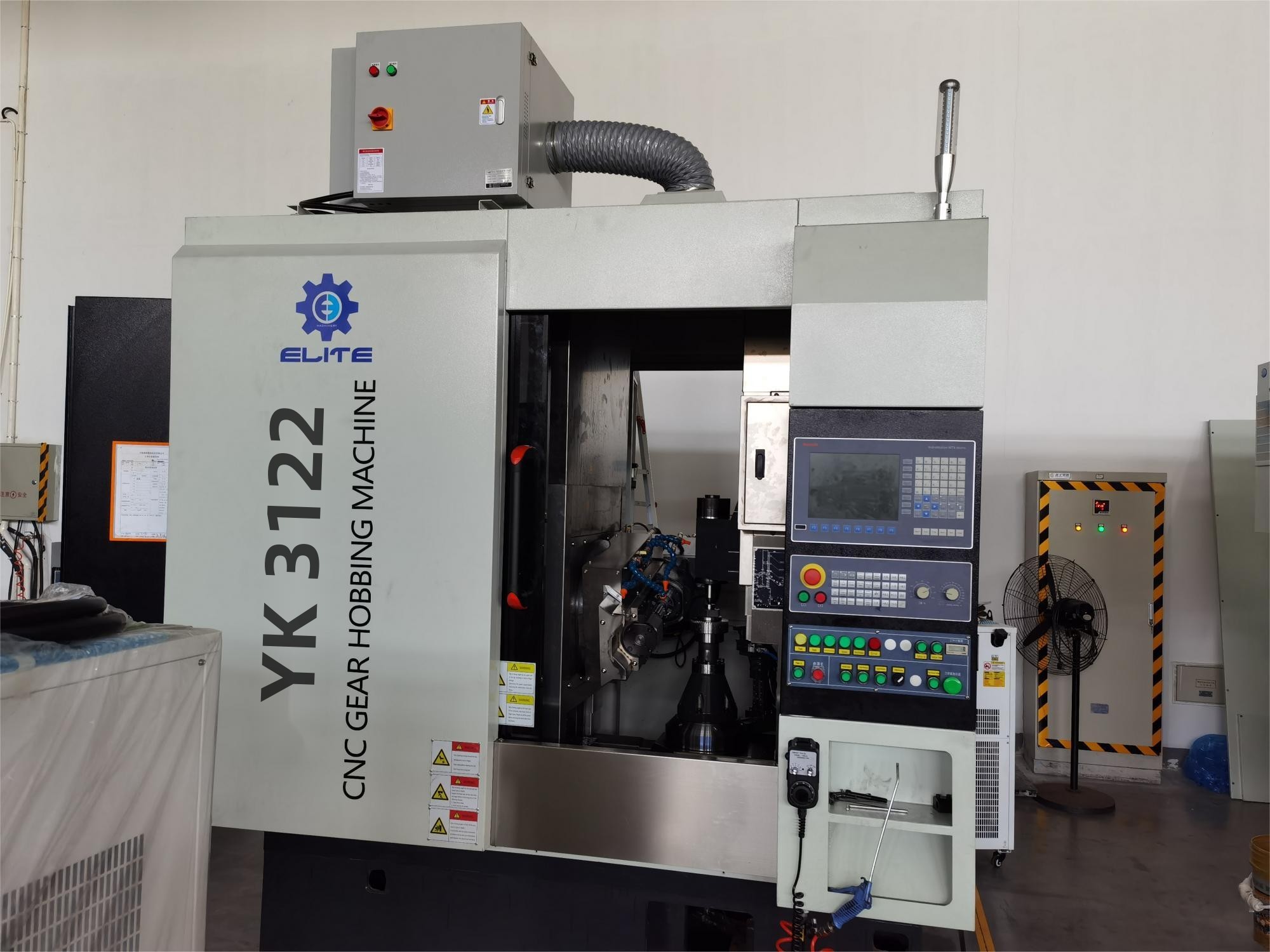

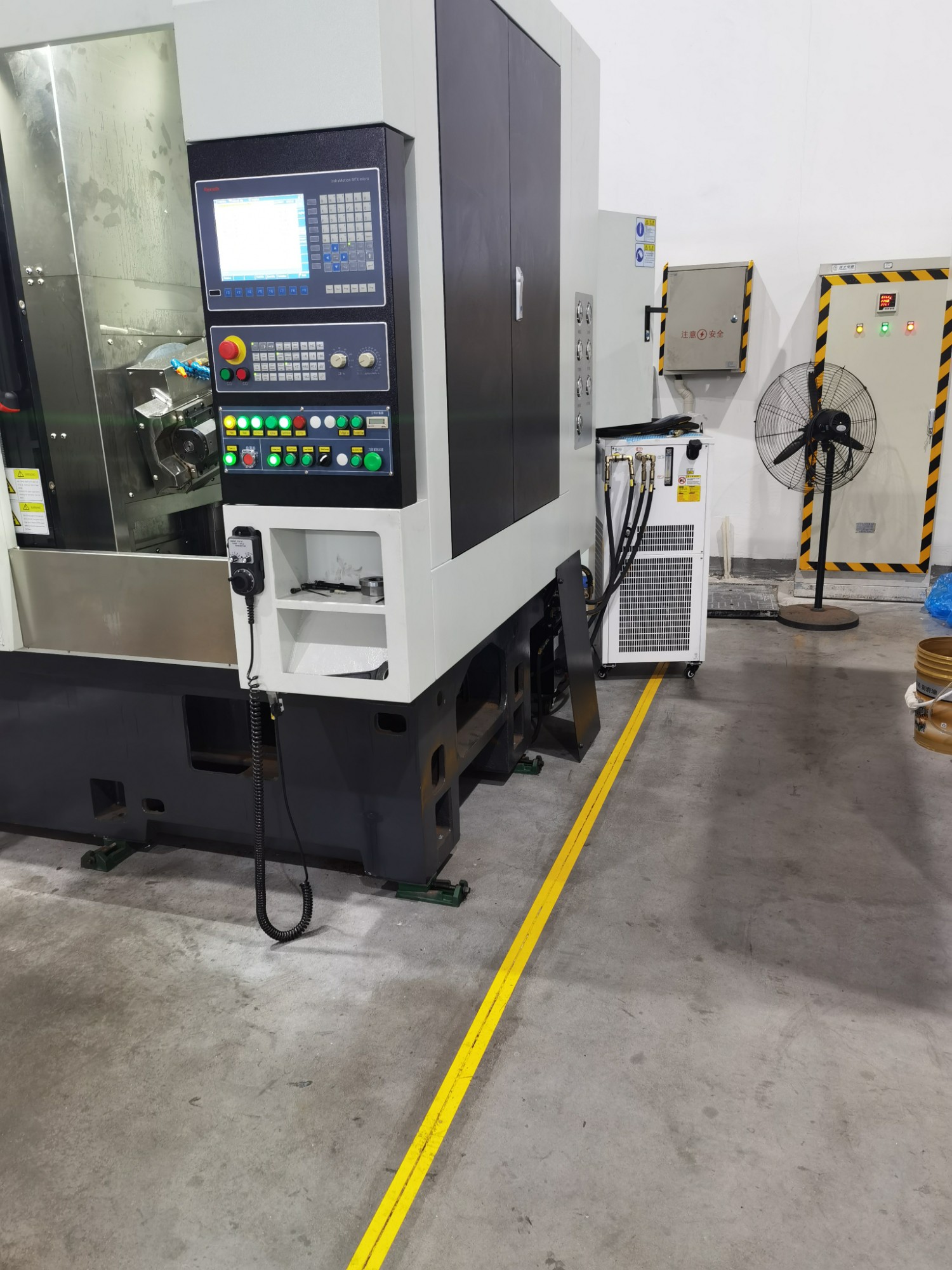

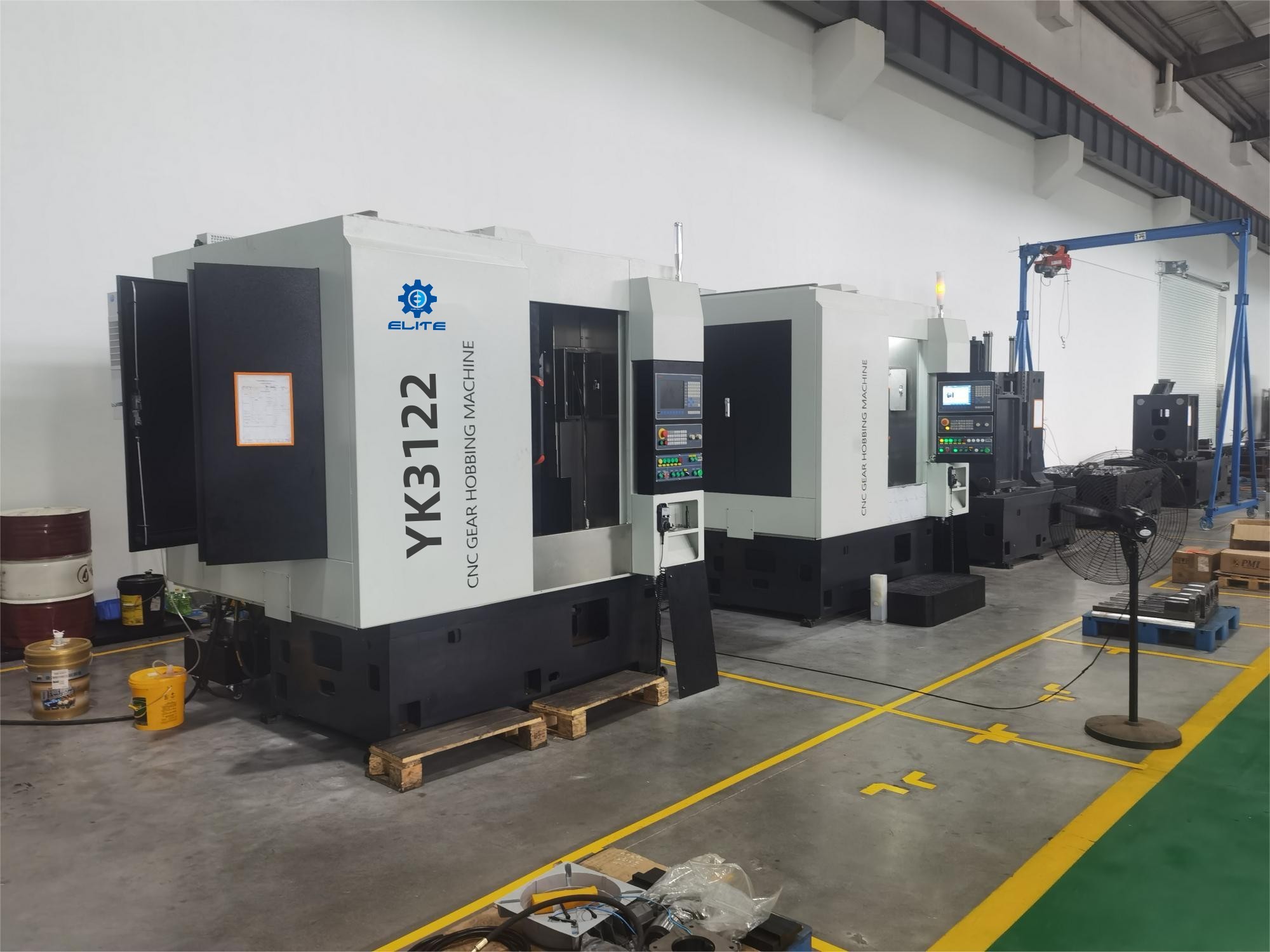

YK3122

NO.	Main Technical Specifications	Unit	YK3122
1	Maximum workpiece diameter	mm	220
2	Maximum work modulus	mm	5
3	Skateboard stroke (Z-axis displacement volume)	mm	300
4	Maximum rotary angle of the tool	°	±45
5	Hob spindle (B axis) speed range	r /min	100~2000
6	Hob spindle (B axis) power (motorized spindle)	Kw	22
7	Hob spindle (B shaft) rated/maximum torque	Nm	105/270
8	Maximum speed of workbench (C axis)	r/min	350
9	Table (C axis) rated/Max torque	Nm	120/250
10	Axial (Z axis) feed speed range	mm/min	1~1000(stepless)
11	Axial (Z axis) fast movement speed	mm/min	4000
12	Range of radial (X axis) feed speeds	mm/min	1~1000(stepless)
13	Radial (X axis) fast moving speed	mm/min	8000
14	Maximum speed of tangential string cutter (Y axis)	mm/min	4000
15	Maximum tool size (diameter × length)	mm	130x200
16	Maximum axial movement of hob	mm	160
17	Range of distance between center of hob and center of workbench	mm	30~180
18	Range of distance between center of hob and tabletop	mm	200~500
19	Diameter of tabletop	mm	200
20	Table surface aperture	mm	60
21	Distance from top end face of rear column to workbench surface	mm	300~600
22	Total power consumed	kVA	45
23	Overall dimensions	Cm	210x210x250
24	Weight	kg	About 7500
