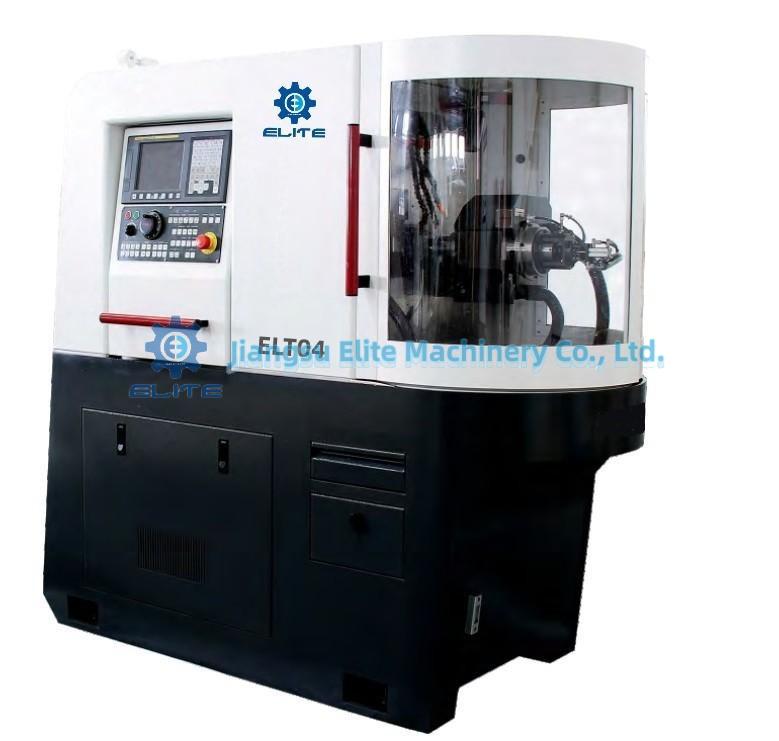

No.

Description

Specification

Remark

1

Max bar-stock diameter

Φ4 mm

2

Max working length

30 mm/

2.5D without guide bush

3

Max sub-spindle part-off length

80mm

4

Spindle speed

10000 r/min

5

Spindle through hole diameter

Φ15 mm

6

Spindle center height

1050 mm

7

Motor power

2.2/3.7kW

Motor spindle

8

Max. Main Spindle drilling diameter

Φ7 mm

9

Max. Main spindle tapping diameter

M6

10

O.D turning tool capacity

5

11

Main spindle drilling tool capacity

4

12

Radial live tool capacity

4

13

Back spindle machining tool

8（4 +4）

14

Tool holder dimension

□10×100~120mm

15

Live tool rpm

6000r/min

16

Live tool motor

0.75KW

17

Max. Live tool drilling diameter

Φ7mm

18

Max. Live tool tapping diameter

M6

19

Max. Sub-spindle speed

10000 r/min

20

Sub-spindle motor

2.2/3.7kW

Built-in

21

sub-spindle drilling diameter

Φ7mm

22

Sub-spindle tapping diameter

M6

23

Control Mode

Semi-closed

24

Detecting element

Built-in Encoder

25

C1、C2 Minimum increments

0.001°

26

X1、Y1、Z1、X2、Z2 increments

0.001 mm

27

X1、Y1、Z1、X2、Z2 Rapid feed

32m/min

28

X1、Y1、Z1、X2、Z2 Motor power

0.75kW

29

Repeatability

X1

0.002mm

Y1

0.002mm

Z1

0.002mm

X2

0.002mm

Z2

0.002mm

30

Radial run out of the positioning hole for pushing sleeve in the spindle

0.004mm

31

Coolant motor

0.35kW

32

Power input

12kVA

33

Pressure requirement

0.5MPa.300L/min

34

Machine Weight

~2600kg

35

Dimension

2165×1205×1830

mm
