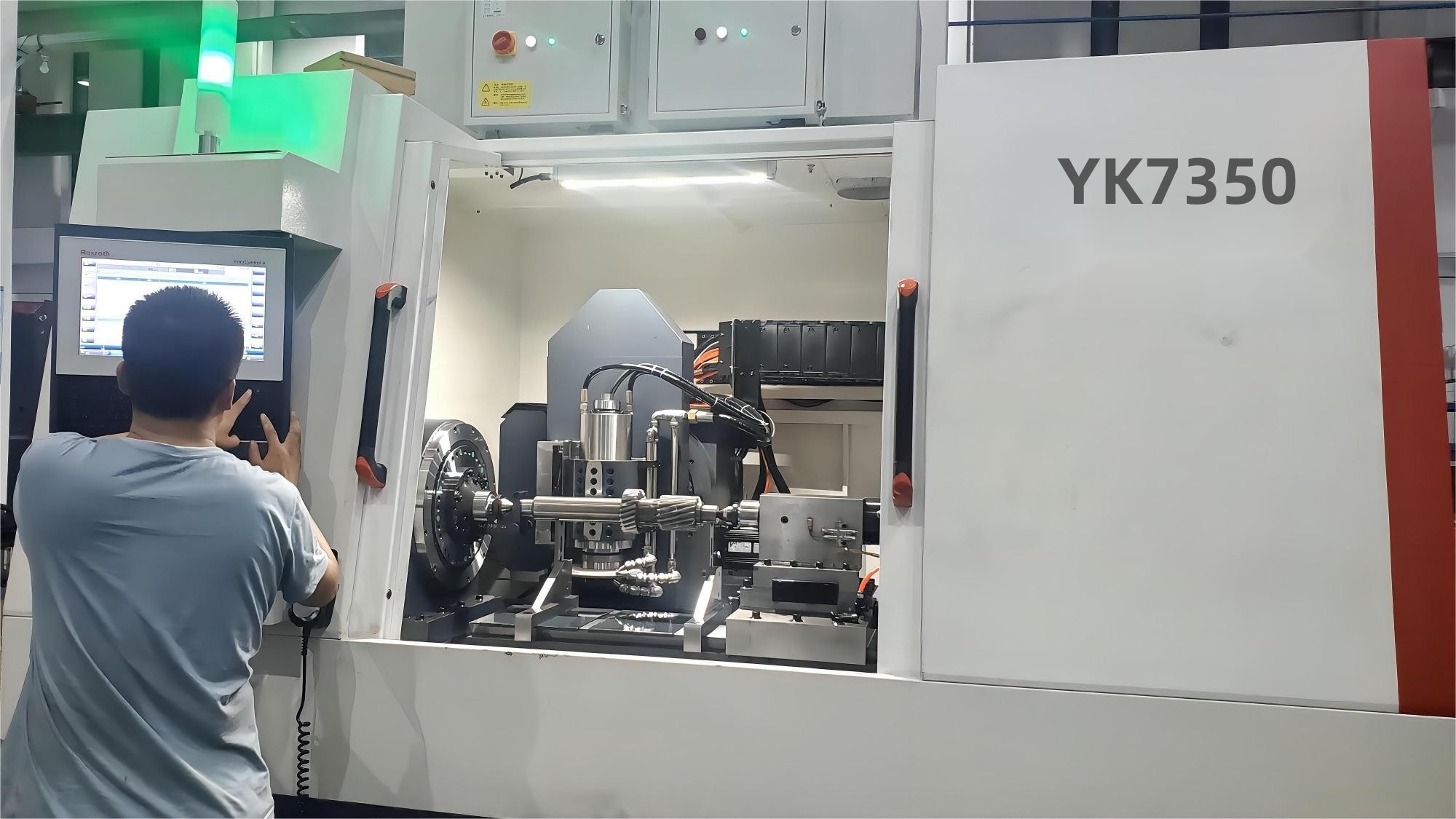

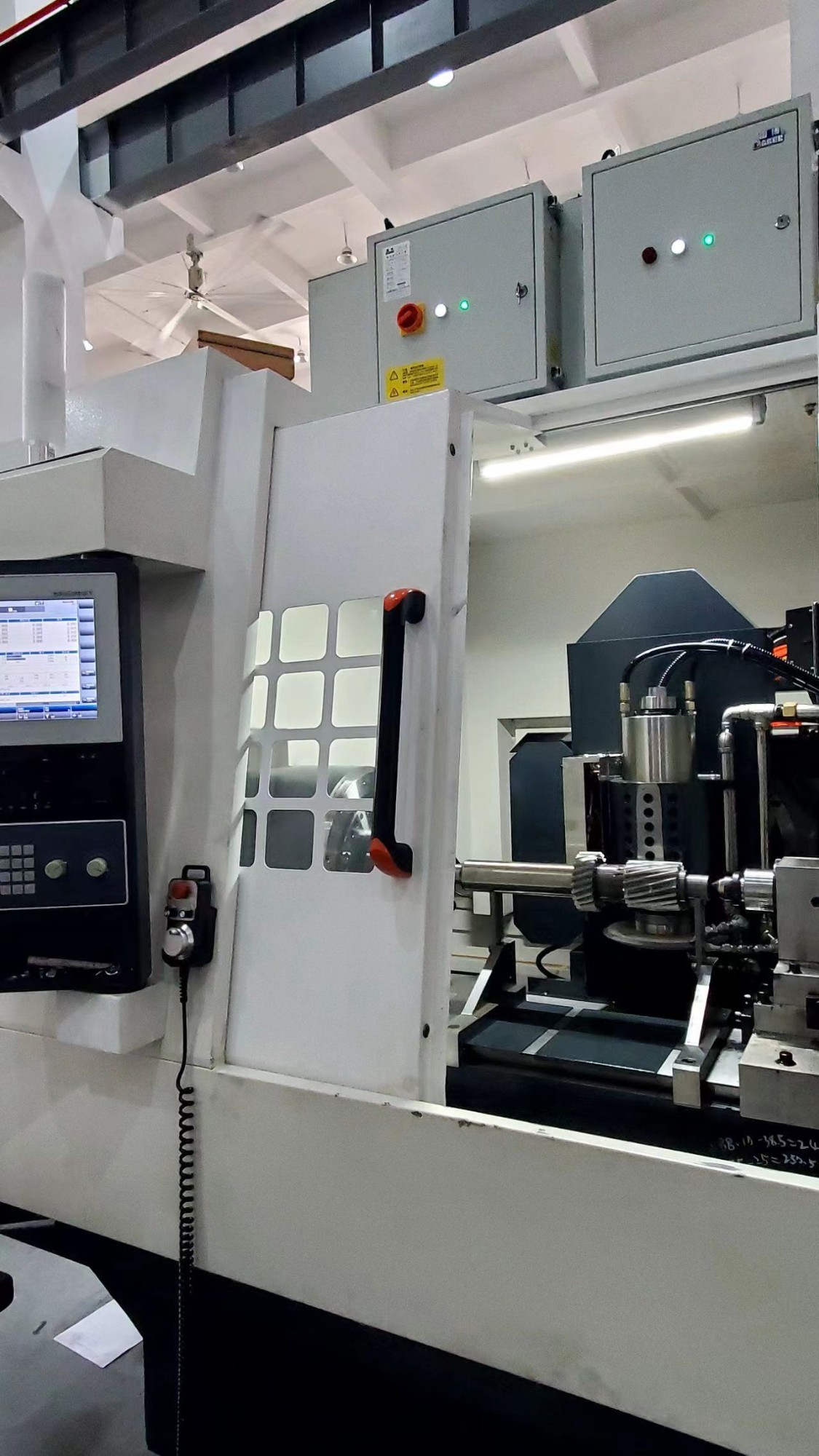

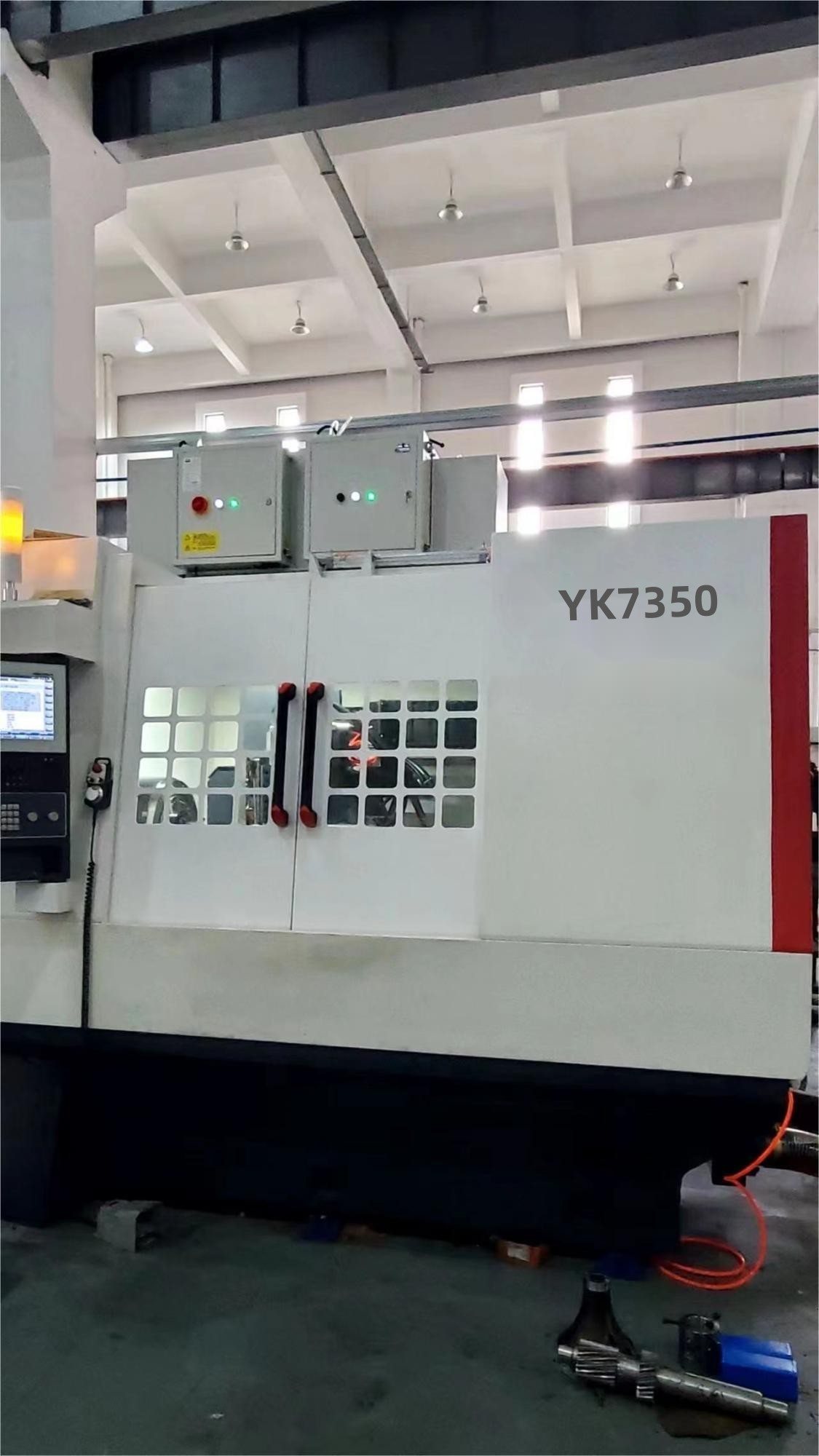

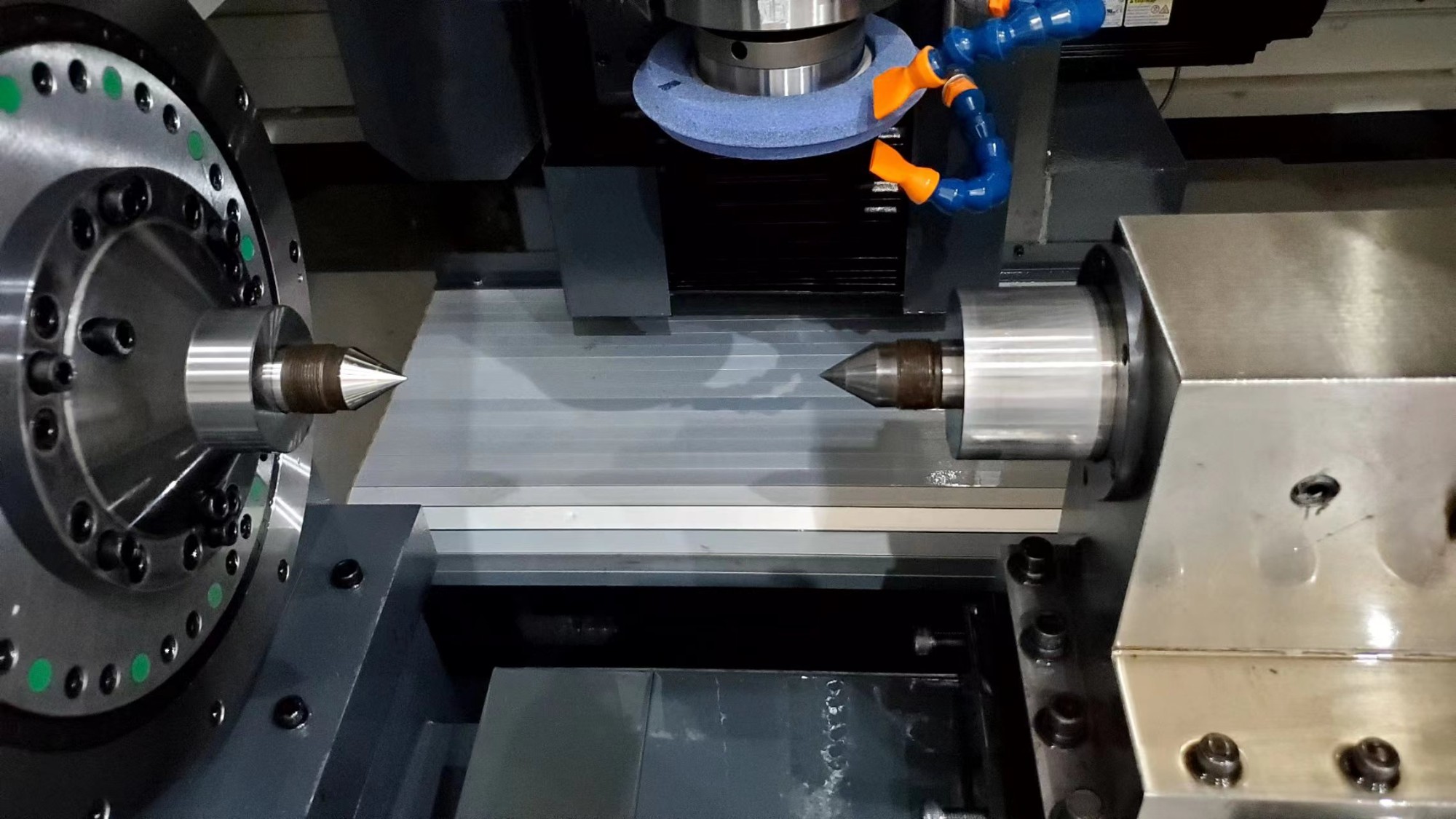

CNC GEAR GRINDING MACHINE YK7350

X axis: linear motor and linear guide rail for radial feed axis of grinding wheel, closed loop control.

Y-axis: linear motor and linear guide rail of grinding wheel tangential feed axis, closed-loop control.

Z axis -- axial feed axis servo motor with lead rod, closed loop control.

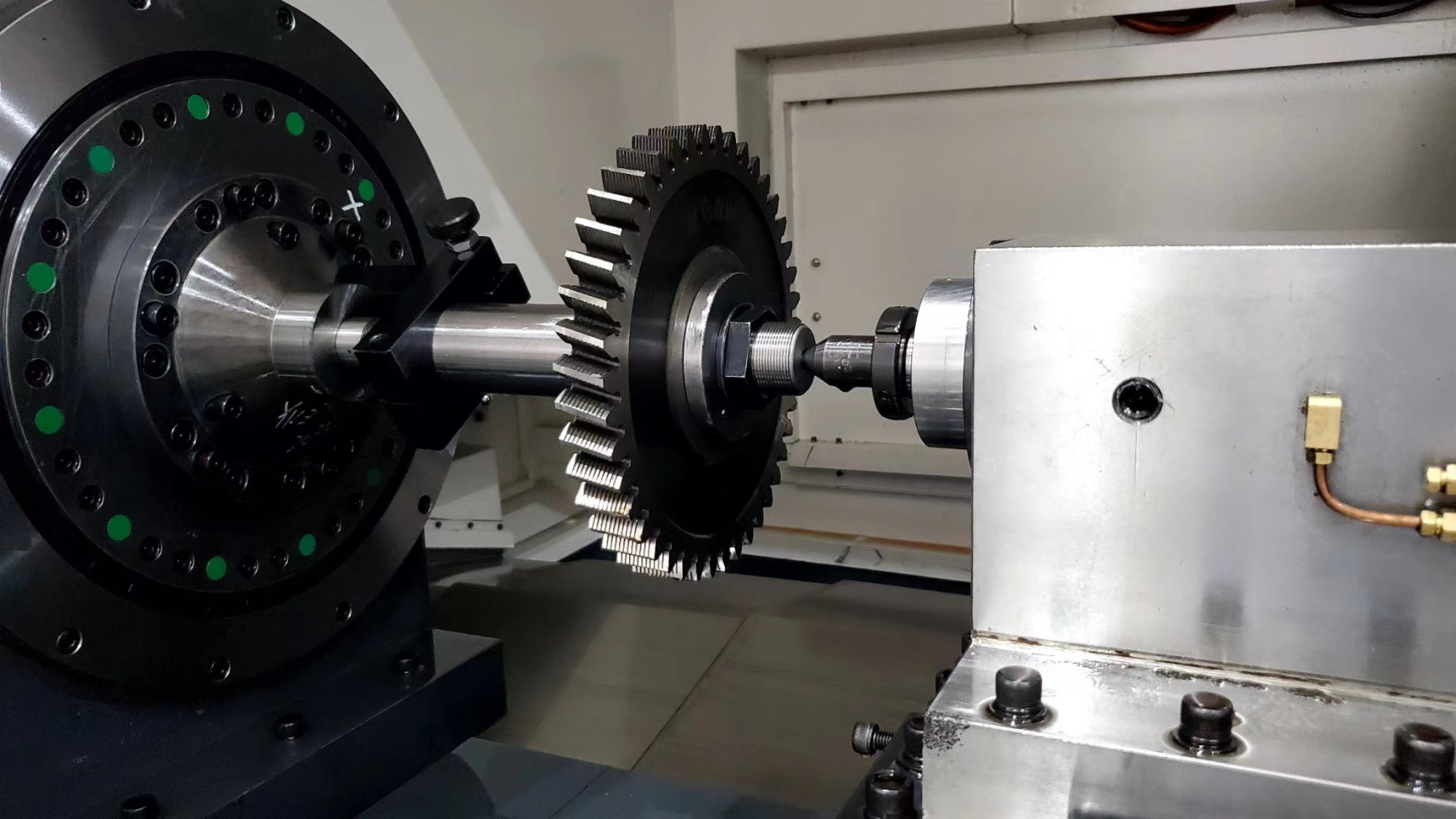

C1 axis -- workpiece rotation axis torque motor drive, closed-loop control.

B1 axis -- wheel rotation axis driven by 15KW electric spindle.

A1 axis -- installation Angle adjustment axis servo motor with worm gear pay, closed loop control.

S axis -- diamond roller rotating shaft driven by electric spindle.

The numerical control axis is X, Y, Z, A1, B1, C1.

The machine tool adopts German Rextrox (version micro 14v22) CNC system. There are 6 servo axes and 1 motorized spindle, wherein X, Y, Z, A1, C1 axis is fully closed-loop control.

Machine tool processing program and gear calculation program integrated, parameterized input, intuitive interface easy to learn, simple and convenient operation.

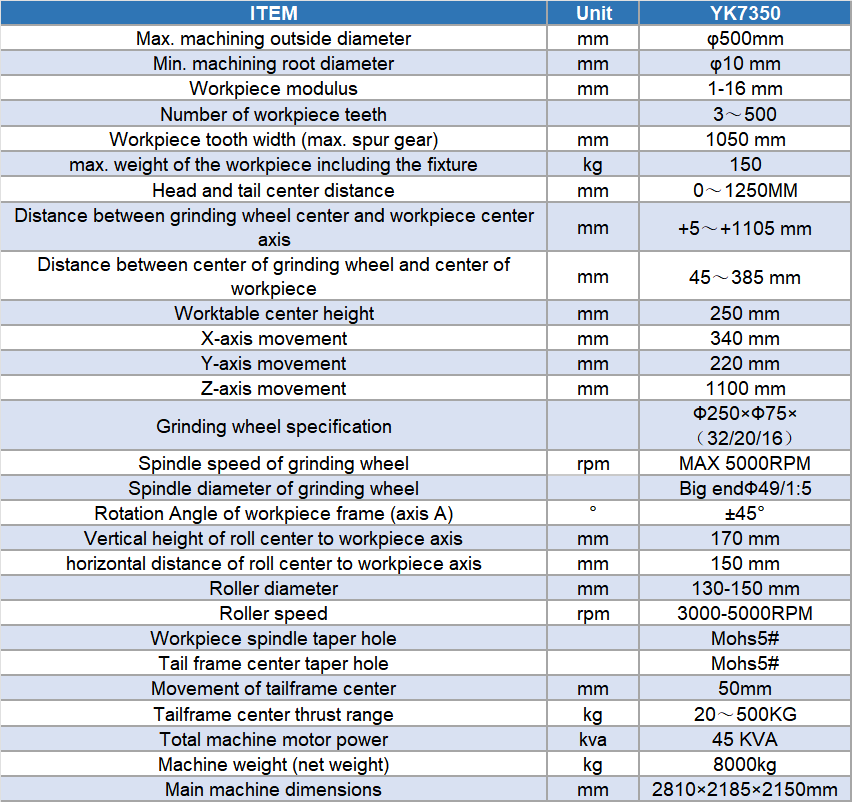

Product Detail

Item	Parts	Manufacture	Remark
Whole set numerical control system	control cabinet	German REXROTH
Motorized spindle	abrasive tools	Made in China
Angle encoder	C1 axis	FAGOR
Linear grating ruler	XYZ axis	HTD
Grinding wheel spindle bearing	B1 axis	Japan NSK
Workpiece spindle bearing	C1axis	Japan NSK
Measuring head	measuring equipment	Switzerland TESA
Linear motor	XY axis	Akribis
Linear guideway	XYZ axis	Taiwan HIWIN
Ball screw	Z axis	Taiwan HIWIN
Electrostatic fog absorber	Machine shield	Baoji Leibo
Cooling filter	Magnetic and paper dual filters	Yantai Tiekou
Diamond roller	Trimming wheel	Suzhou
Tank temperature control device	Cooling filter tank	Beijing Sanhe
Spindle motor temperature control device	C1 axis	Beijing Sanhe
Electric cabinet temperature control device	Electric cabinet	Baoji Leibo
