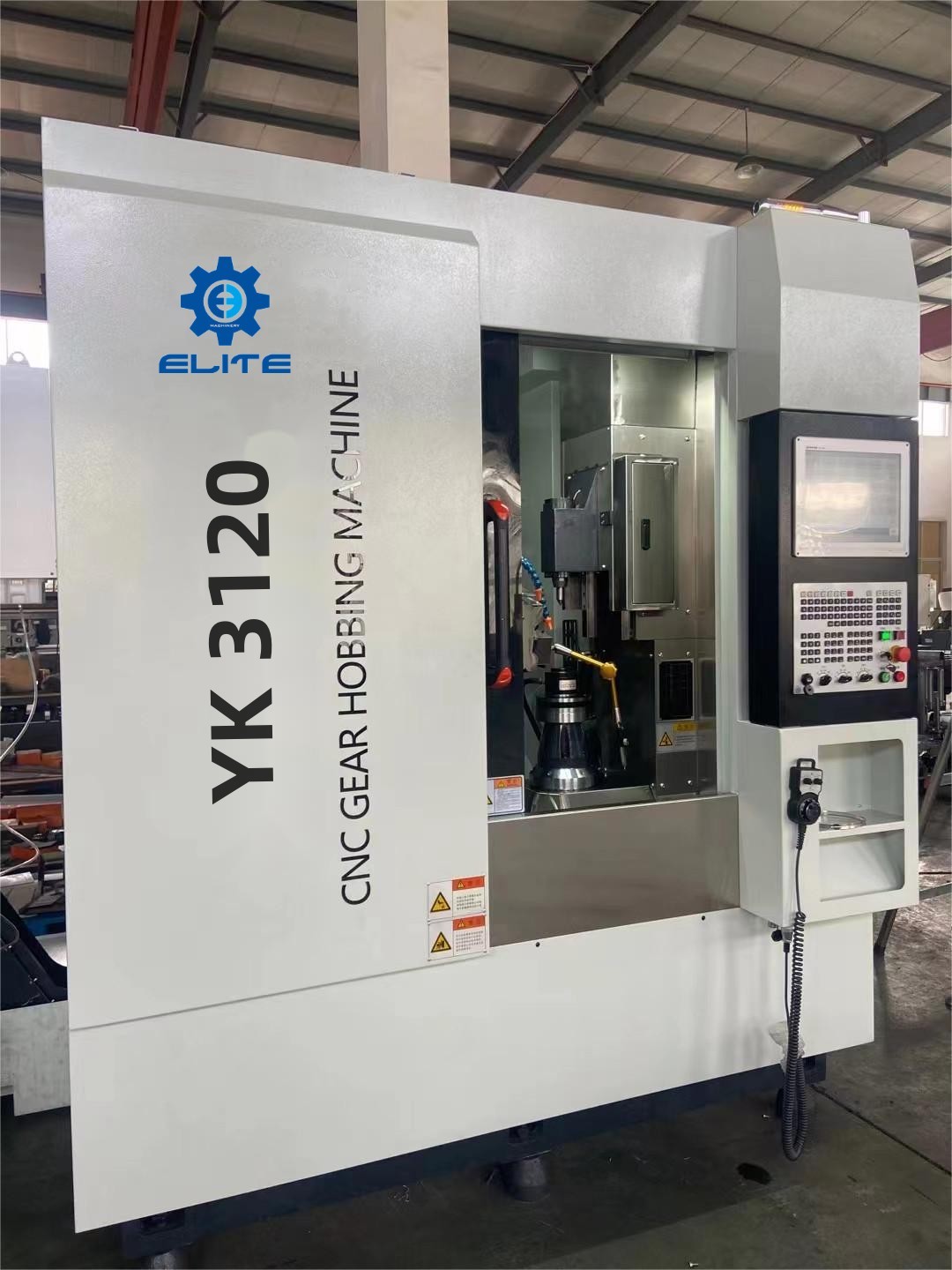

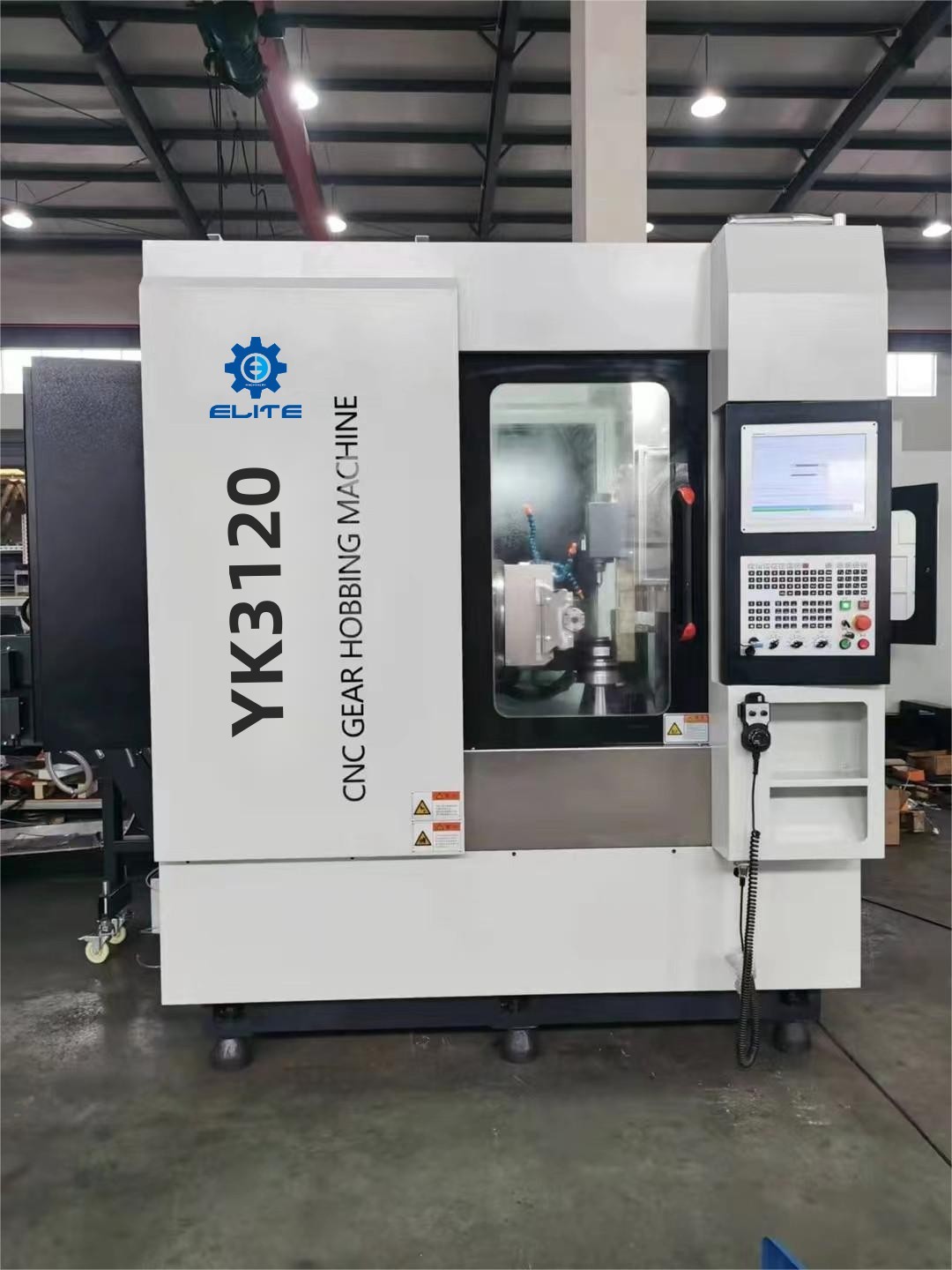

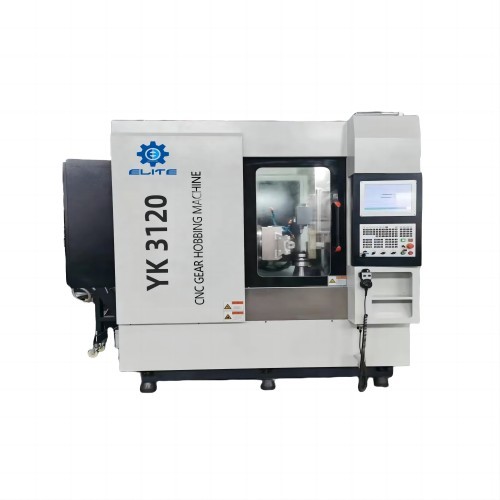

The machine adopts a full set of Taiwan SYNTEC (include drive motor), which is a 6 axis, 4 linkage CNC tooth rolling.

The B axis is directly driven by the high precision servo spindle motor, the C axis is equipped with high precision reducer large torque to drive, the rest of the shaft is the AC servo motor driven, using the display method principle, through the CNC system electronic gearbox (EGB) function, realize the degree and differential compensation movement, can realize the cylindrical straight gear, inclined gear, small taper teeth, drum teeth, splines, worm wheel, sprocket and other tooth processing. The numerical control axis is:

A-axis-tool rest rotates

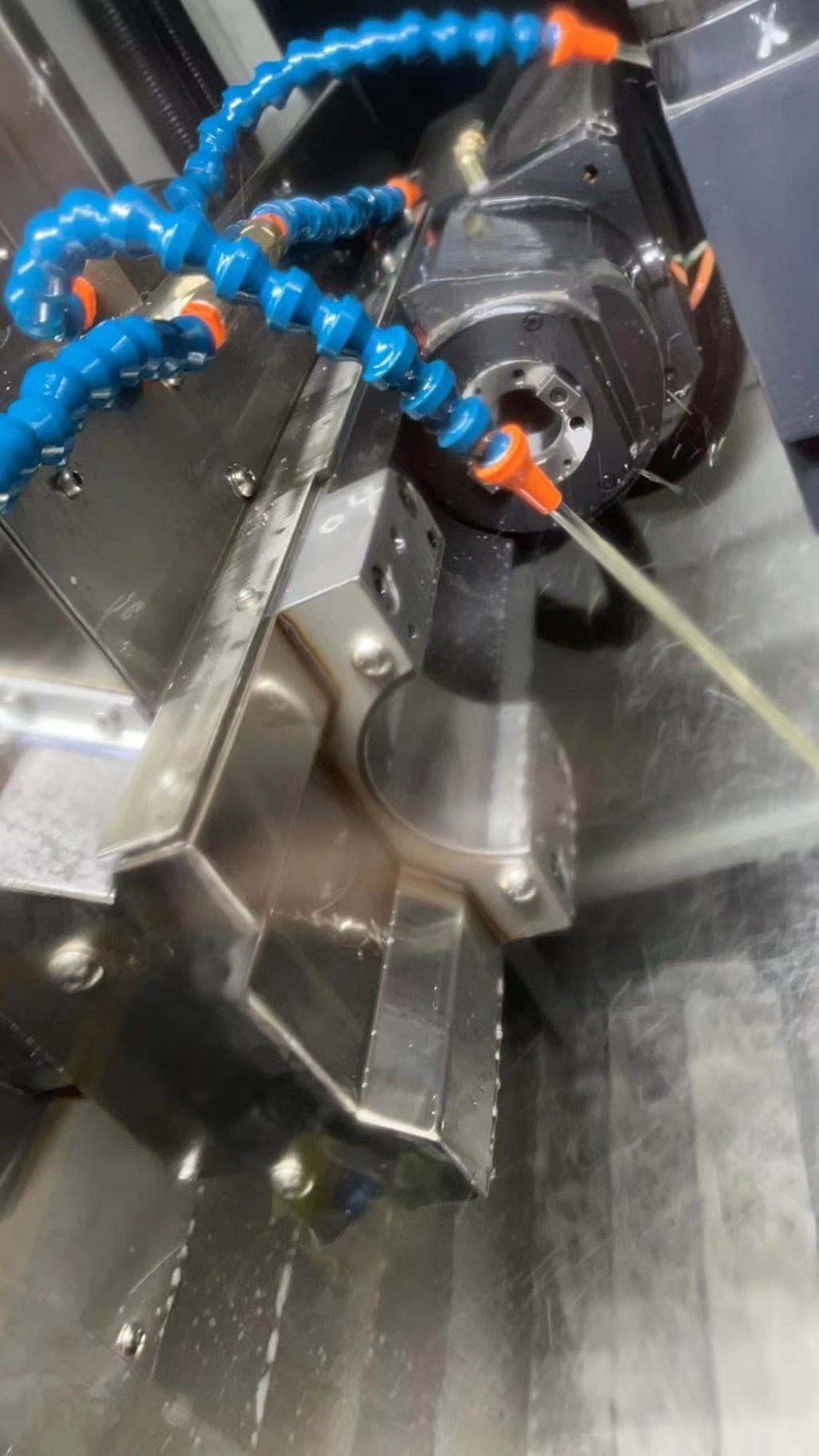

B-axis-hob spindle rotary motion

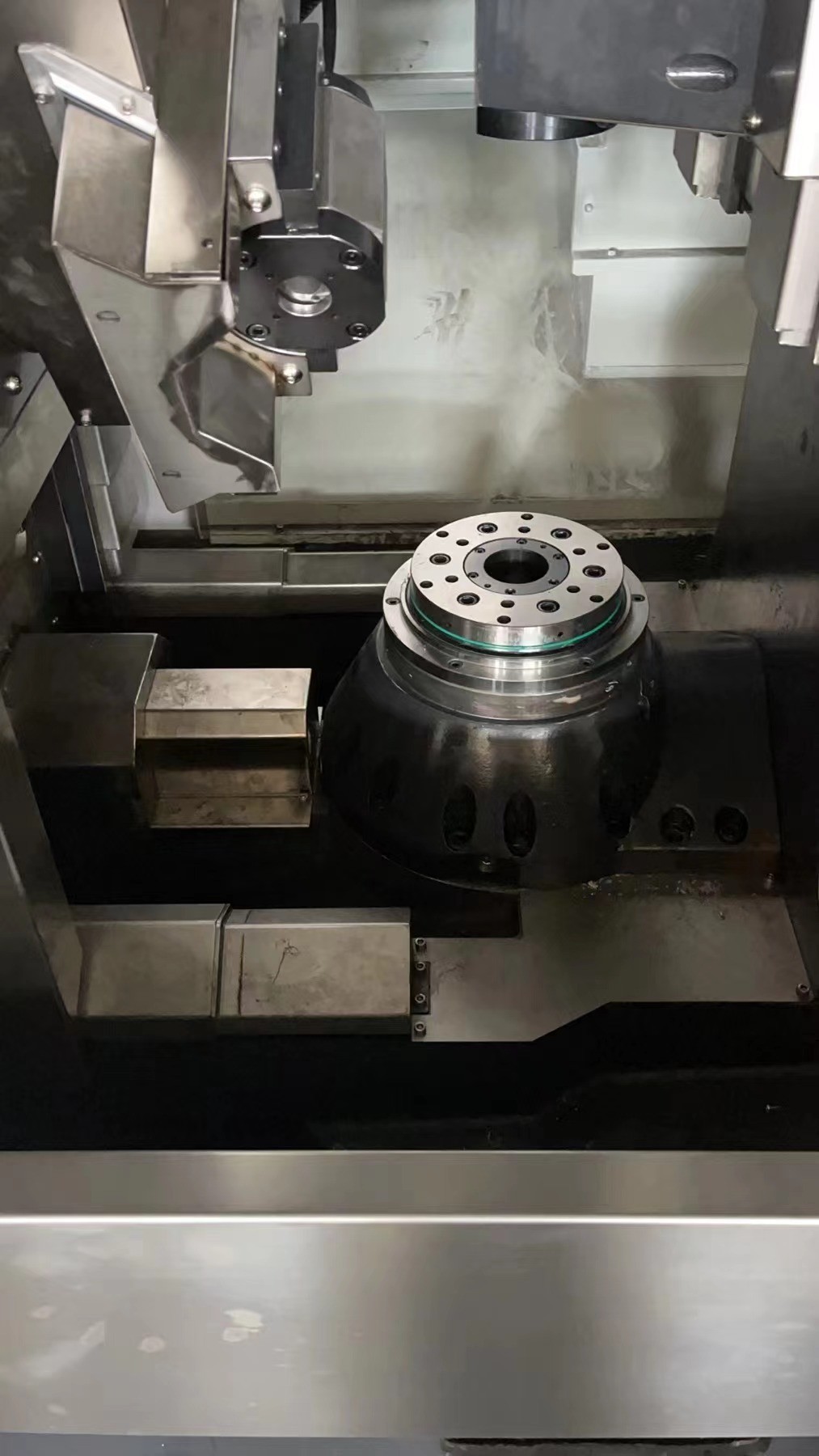

C-axis-bench rotary movement

X-axis-radial feed movement

Y-axis-the tangential feed movement

Z-axis-axial feed movement

Standard machine linkage axis: B, C, X, Z

Axis B: using high-precision coupling and motor
